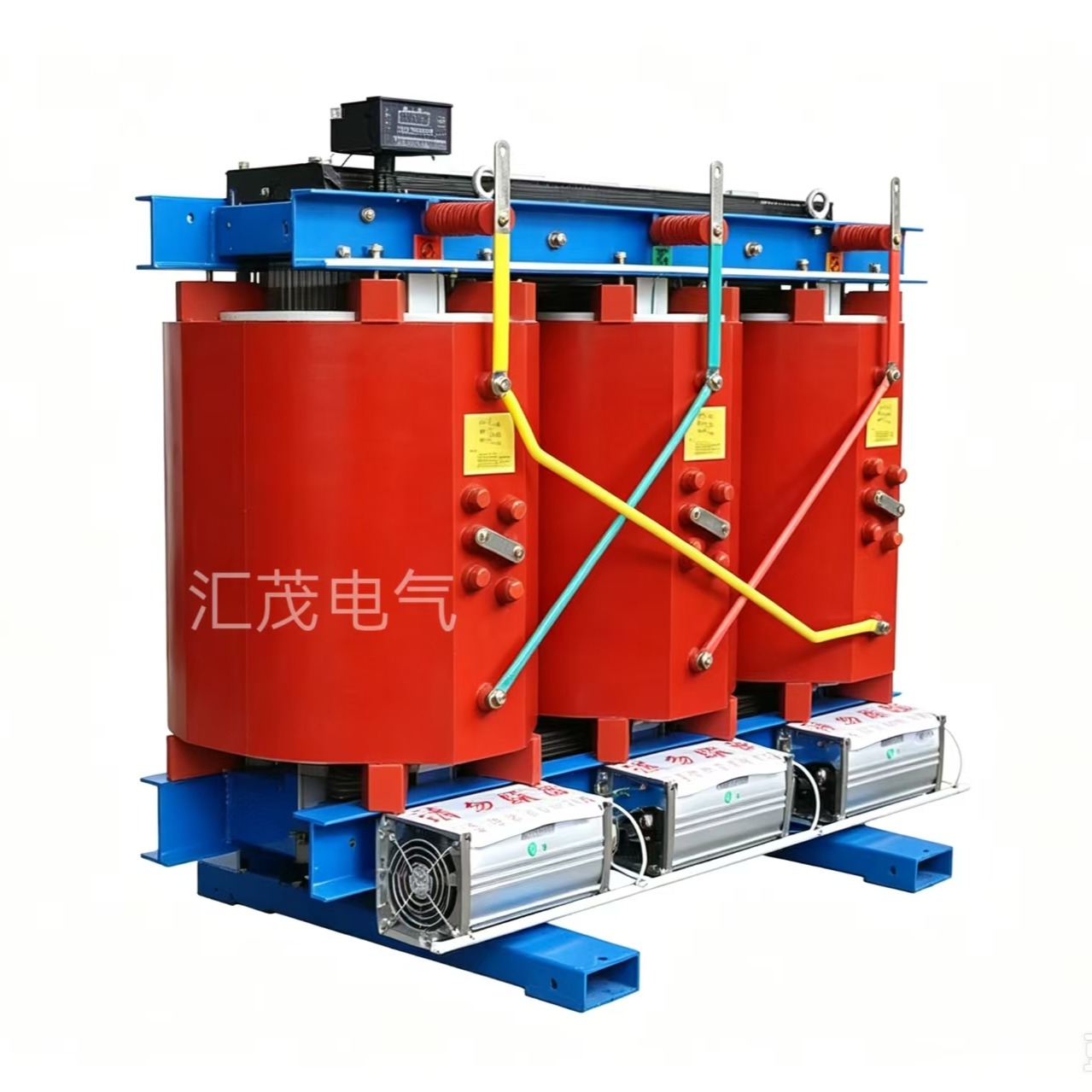

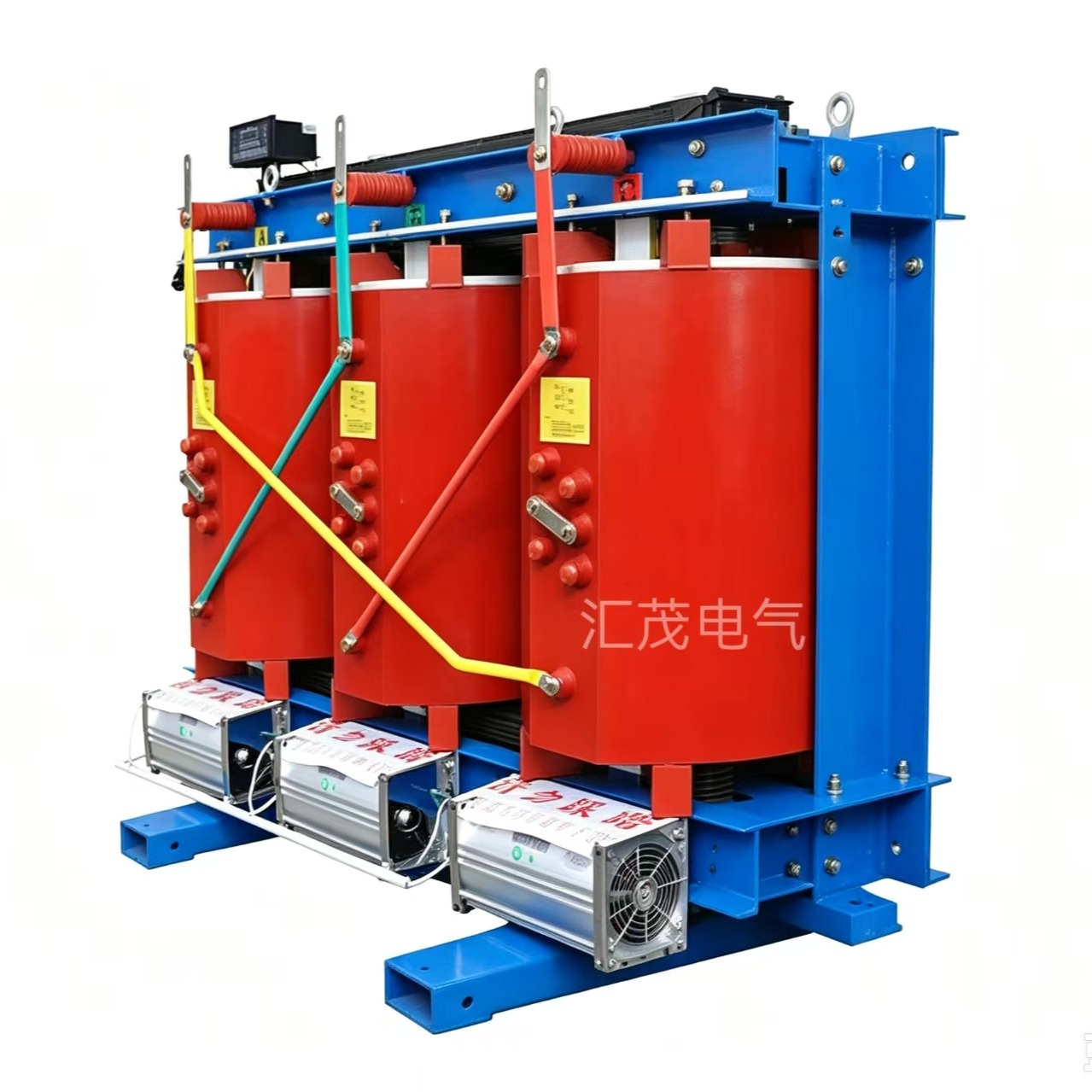

Cast-Resin Dry-Type Transformer (SC(B) series)

Epoxy cast-resin dry-type transformer for indoor installations where fire safety is critical. Available at 10, 20 and 35 kV.

Key parameters

Rated capacity
30–2500 kVA
Voltage class
10 / 20 / 35 kV
Insulation class
Class F / H
Protection rating
IP00–IP23
Request a quote for this product

Overview

The SC(B) cast-resin dry-type transformer is self-extinguishing, moisture-resistant and virtually maintenance-free, making it ideal for hospitals, high-rise buildings, tunnels and other populated environments. Class F/H insulation and low partial-discharge windings ensure a long, quiet service life.

Technical parameters

SC(B)13-30~2500/10/0.4 series — technical parameters
ModelRated capacity (kVA)No-load loss (W)Load loss (W)No-load current (%)Impedance (%)Dimensions (L×W×H, mm)
SCB13-303013564024970×700×950
SCB13-505019590024990×800×990
SCB13-808026512401.541020×800×995
SCB13-10010029014101.541050×800×1000
SCB13-12512534016601.341080×850×1020
SCB13-16016038519101.341120×900×1040
SCB13-20020044522701.141140×950×1095
SCB13-25025051524800.941190×950×1120
SCB13-31531563531200.841220×1000×1160
SCB13-40040070535900.841260×1130×1270
SCB13-50050083543900.841290×1130×1310
SCB13-63063093553600.761330×1130×1380
SCB13-800800109062600.761380×1130×1420
SCB13-10001000127073100.761450×1130×1470
SCB13-12501250150087200.761490×1130×1510
SCB13-160016001760105000.761540×1230×1570
SCB13-200020002190130000.661580×1230×1630
SCB13-250025002590154000.661640×1230×1710
SC(B)10-30~2500/10/0.4 series — technical parameters
ModelRated capacity (kVA)No-load loss (W)Load loss (W)No-load current (%)Impedance (%)Dimensions (L×W×H, mm)
SCB10-30301907102.14870*700*880
SCB10-505027010002.14890*800*950
SCB10-808037013801.64940*800*1010
SCB10-10010040015701.64980*830*1020
SCB10-12512547018501.44990*860*1030
SCB10-16016054021301.441050*990*1050
SCB10-20020062025301.241100*900*1080
SCB10-25025072027601.241140*1000*1105
SCB10-31531588034701.041210*1000*1295
SCB10-40040098039901.041245*1130*1360
SCB10-500500116048801.041250*1130*1500
SCB10-630630130059601.041420*1130*1280
SCB10-800800152069600.861425*1240*1575
SCB10-10001000177081300.861520*1130*1570
SCB10-12501250209096900.861620*1230*1680
SCB10-160016002450447300.861690*1230*1770
SCB10-200020003050144500.761760*1330*1870
SCB10-250025003600171700.761830*1330*2030
SC(B)11-30~2500/10/0.4 series — technical parameters
SCB11-303017071042.1860*700*920
SCB11-5050240100042.1950*800*975
SCB11-8080330138041.6950*800*940
SCB11-100100360157041.6970*800*950
SCB11-125125420185041.4990*850*985
SCB11-160160480213041.41000*900*1045
SCB11-200200550253041.21100*950*1070
SCB11-250250640276041.21140*950*1105
SCB11-315315790347041.01160*1000*1185
SCB11-400400880399041.01220*1130*1395
SCB11-5005001040488041.01260*1130*1480
SCB11-6306301200588041.01390*1130*1355
SCB11-8008001360696060.81425*1130*1515
SCB11-100010001590813060.81460*1130*1600
SCB11-125012501880969060.81520*1230*1710
SCB11-1600160022001173060.81620*1230*1820
SCB11-2000200027401445060.71690*1330*2065
SCB11-2500250032401717060.71850*1330*2165
